Ultra Precise Spline Drive Digital Rotating Torque Transducers - 48850V & 48851V

Model #: MCRT® 48850V & MCRT® 48851V
Description:

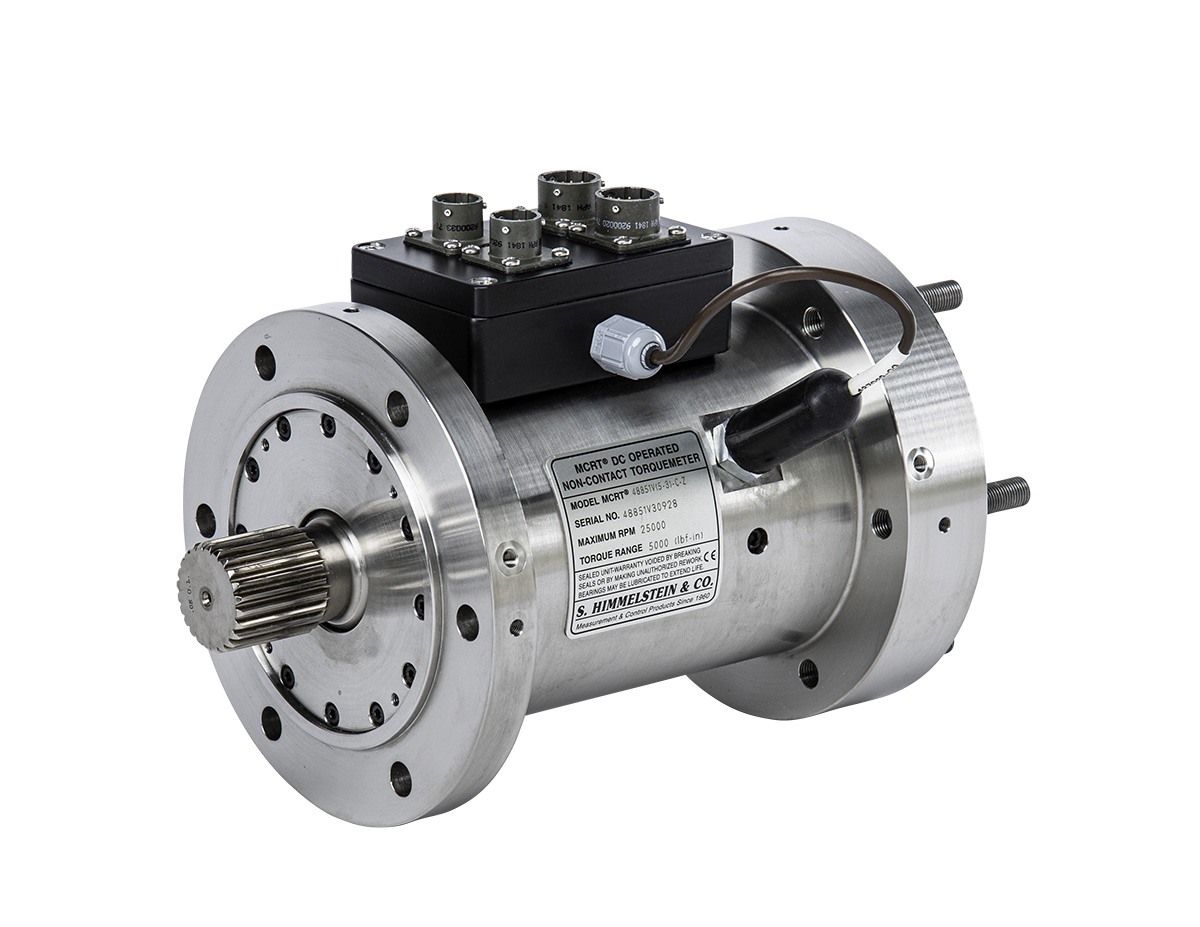

Non-Contact, Ultra Precise Digital Torque Sensors with with Spline Drive per AND 10262 & AND 20002

Starting From: $ 14,720.00
Specification Sheet
Comparison Chart to Old Models
Quick Start Installation Guide
Product Manual
Request Quote

Features

  • 300% Overload, 150% Overrange
  • 30,000 rpm Max Speed Permanently Lubricated
  • Engineering Unit Digital Outputs of Torque, Speed & Power
  • ±5.000/±10 Volt Analog Outputs of Torque, Speed & Power
  • Hardened to EMI from Adjustable Speed Drives
  • 1 kHz Bandwidth
  • ISO 17025:2017 Accredited Calibration

Ranges

Model #
MCRT® 48850V(5-1)
Nm
5.65
Lbf-in
50
Model #
MCRT® 48850V(1-2)
Nm
11.3
Lbf-in
100
Model #
MCRT® 48850V(2-2)
Nm
22.6
Lbf-in
200
Model #
MCRT® 48850V(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 48850V(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 48851V(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 48851V(2-3)
Nm
226
Lbf-in
2000
Model #
MCRT® 48851V(5-3)
Nm
565
Lbf-in
5000
Model #
MCRT® 48851V(1-4)
Nm
1130
Lbf-in
10000
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0006/≤±0.0011
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
300%
Analog Output:
CW = +10V, CCW = -10V or CW = +5V, CCW = -5V, user changeable, full scale torque and power
Digital Output:

Torque, Speed and Power in Engineering Units over RS232/422/485

Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1,000 Hz in thirteen 1-2-5 steps
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
System Resolution (% of full scale):
0.003
Power Supply:

10 to 26 Vdc @ 2.7 Watts, nominal

Available Options

  • Enhanced Performance (Code C)
  • Speed and Power Output (Code Z)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 733+ Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 703+ or 733+
224-8722-XX
Torque & Speed to 733+
224-8800-XX
Analog Outputs to Tinned Leads
224-8917-XX
Logic I/O to Tinned Leads
224-8918-XX
RS232
224-8359-XX
RS422/485
224-8360-XX
RS485 Torquemeter to Torquemeter
224-8361-XX
