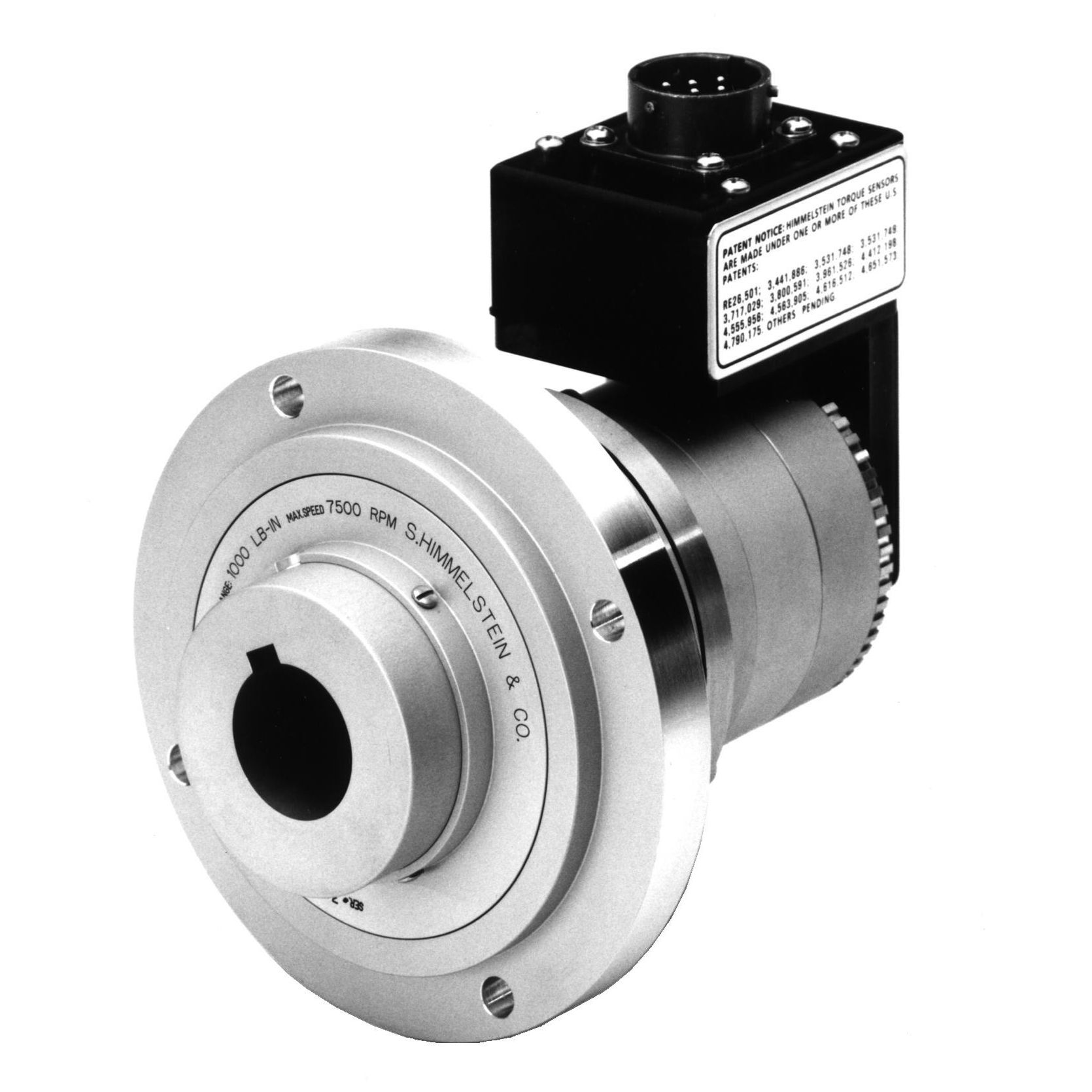

Non-Contact, Pulley/Sprocket Style Torque Transducers-3120TA

Model #: MCRT® 3120TA
Description:

Non-Contact, Pulley Style Torque Transducers

Starting From: $9,350.00
Data Sheet
Request Quote

Features

  • Installs in Small Spaces Without Pillow Blocks or Flexible Couplings
  • Insensitive to Belt/Chain Loads
  • Avoids Pillow Block Bearing Errors
  • Noise Hardened for VFD Applications
  • NIST Traceable Calibration

Ranges

Model #
MCRT® 3120TA(5-1)
Nm
5.65
Lbf-in
50
Model #
MCRT® 3120TA(1-2)
Nm
11.3
Lbf-in
100
Model #
MCRT® 3120TA(2-2)
Nm
22.6
Lbf-in
200
Model #
MCRT® 3120TA(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 3120TA(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 3120TA(15-2)
Nm
170
Lbf-in
1500
Code N
Combined Error (% of Range)
≤0.10
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
250% up to and including 1,000 lbf-in range; 200% for 1,500 lbf-in range
Analog Output:
4 mV/V
Compensated Range ˚F/˚C:
+75 to +175/+24 to +79
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Storage Range ˚F/˚C:
-65 to +220/-54 to +104
Power Supply:

3 to 6 Vrms, 3 kHz±10% sine wave

Available Options

  • Standard Speed Pickup (Code A)

Accessories

  • Model 701 Instrument - Torque Display Only
  • Model 721 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque Only to 701, 711 or 721
224-6661V-XX
Torque & Speed to 721
224-6660V-XX
