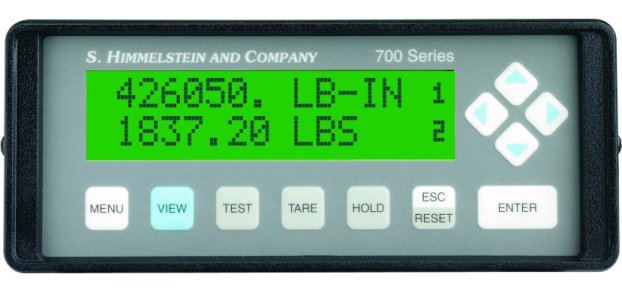

This is a full featured voltage conditioner/readout; the Model 733+ handles two inputs. It provides fast, accurate data for each input. It includes 20 useful processing functions and 26 real-time digital calculations built into the system. These features make the Model 733+ into a powerful production and performance two-channel test analyzer with easily configured characteristics. A two-line alphanumeric display publishes measured and computed data, units of measure and test status. Calibration of this dual-channel DC voltage conditioner is automatic, requiring no manual adjustments.
Dual Channel Voltage Conditioner
Model #: 733+
Summary
Two channel Voltage Conditioner and display for DC Operated Torquemeters, DC LVDT's, Watts, vars, current, voltage and potentiometric transducers.
- 6 full digit engineering unit display
- 7,800 samples/second/channel
- ±1V to ±10V inputs protected to 130Vrms
- accepts differential or single ended signals
- includes protected 15V and 5V sensor excitation
- real-time cross channel calculations
- auto-scaled selectable Voltage or Current analog outputs
- RS232/422/485 serial communications
