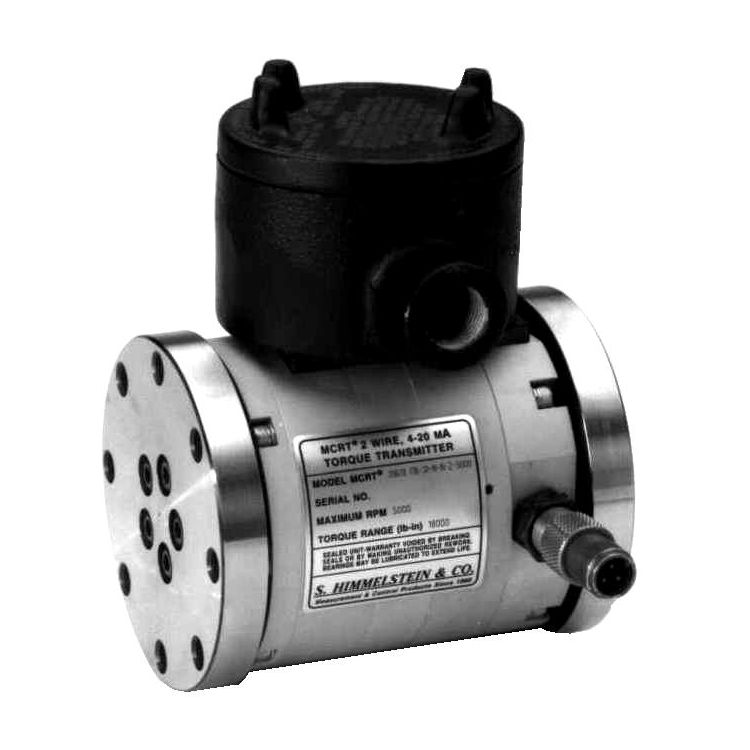

2-Wire, 4-20 mA Loop Powered, Flanged End Torque Transmitters-39000X

Model #: MCRT® 39000X
Description:

Flanged end, two wire torque transmitter

Starting From: $12,465.00
Data Sheet
Request Quote

Features

  • High Safety Margins  — Handle 4X Overloads
  • Ten Times the Noise Immunity
  • NIST Traceable, NVLAP* Accredited Dead Weight Calibration
  • Ferrite-free, Non-contact Signal Transformers
  • Switchable to 12 ±8 mA Mode
  • 10 to 28 Volt Power Input, Reverse Polarity Protected
  • Splashproof & Corrosion Resistant



Ranges

Model #
MCRT® 39060X(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 39060X(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 39060X(2-3)
Nm
226
Lbf-in
2000
Model #
MCRT® 39061X(3-3)
Nm
338.95
Lbf-in
3000
Model #
MCRT® 39061X(5-3)
Nm
565
Lbf-in
5000
Model #
MCRT® 39061X(12-3)
Nm
1360
Lbf-in
12000
Model #
MCRT® 39070X(12-3)
Nm
1360
Lbf-in
12000
Model #
MCRT® 39070X(24-3)
Nm
2710
Lbf-in
24000
Model #
MCRT® 39070X(48-3)
Nm
5420
Lbf-in
48000
Model #
MCRT® 39080X(1-5)
Nm
11300
Lbf-in
100000
Model #
MCRT® 39080X(25-4)
Nm
28200
Lbf-in
250000
Code N
Combined Error (% of Range)
≤±0.15
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.003/≤±0.0054
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.003/≤±0.0054
Code C
Combined Error (% of Range)
≤±0.07
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
400%
Analog Output:
CW = 4-20mA, CCW = 4-20mA, CW Bidirectional = 12±8 mA, CCW Bidirectional = 12±8 mA
Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
125%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
dc to 200 Hz or, dc to 1 Hz, switch selected
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Power Supply:

10 to 28 Vdc, fused and reverse polarity protected

Available Options

  • Enhanced Performance (code C )
  • Magnetic Speed Pickup (code Z)
  • Explosion-Proof Speed Pickup (Code P)

Accessories

  • Model 706 Instrument - Torque Display Only
  • Model 726 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 706 or 726
224-6977V-XX
Zero Speed to 726
224-5327V-XX
