MCRT® 49860/61/70V

Model #: MCRT® 49860V, MCRT® 49861V, & MCRT® 49870V
Description:

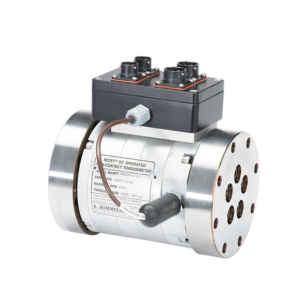

Flanged In-Line Digital Rotating Torque Transducer

Starting From: $10,285.00
Data Sheet
Request Quote

Features

  • Digital and Analog Outputs of Torque, Speed and Power
  • 1 kHz Bandwidth
  • 0.1% Combined Nonlinearity and Hysteresis
  • 0.001% Temperature Performance
  • 0.03% 48 Hour Drift
  • Hardened to EMI from Adjustable Speed Drives
  • Bi-Polar Rotor Shunt Cal - NIST Traceable
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration

Ranges

Model #
MCRT® 48860V(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 49860V(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 49860V(2-3)
Nm
226
Lbf-in
2000
Model #
MCRT® 49861V(3-3)
Nm
339
Lbf-in
3000
Model #
MCRT® 49861V(5-3)
Nm
565
Lbf-in
5000
Model #
MCRT® 49861V(12-3)
Nm
1356
Lbf-in
12000
Model #
MCRT® 49870V(12-3)
Nm
1356
Lbf-in
12000
Model #
MCRT® 49870V(24-3)
Nm
2712
Lbf-in
24000
Model #
MCRT® 49870V(48-3)
Nm
5424
Lbf-in
48000
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002
Code C
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002

Specs

Mechanical Overload:
400%
Analog Output:
CW = +10V, CCW = -10V or CW = +5V, CCW = -5V, user changeable, full scale
Digital Output:

Torque, Speed and Power in Engineering Units over RS232/422/485

Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Nominal Overange (% of Range):
300%, except 15 V max on the analog output
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1,000 Hz in thirteen 1-2-5 steps
Storage Range ˚F/˚C:
-25 to +185/-31 to +85
System Resolution (% of full scale):
0.003
Power Supply:

10 to 26 Vdc @ 2.7 Watts, nominal

Available Options

  • Enhanced Performance (Code C)
  • Speed and power output (Code Z)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 733+ Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 703+ or 733+
224-8722-XX
Torque & Speed to 733+
224-8800-XX
Analog Outputs to Tinned Leads
224-8917-XX
Logic I/O to Tinned Leads
224-8918-XX
RS232
224-8359-XX
RS422/485
224-8360-XX
RS485 Torquemeter to Torquemeter
224-8361-XX
