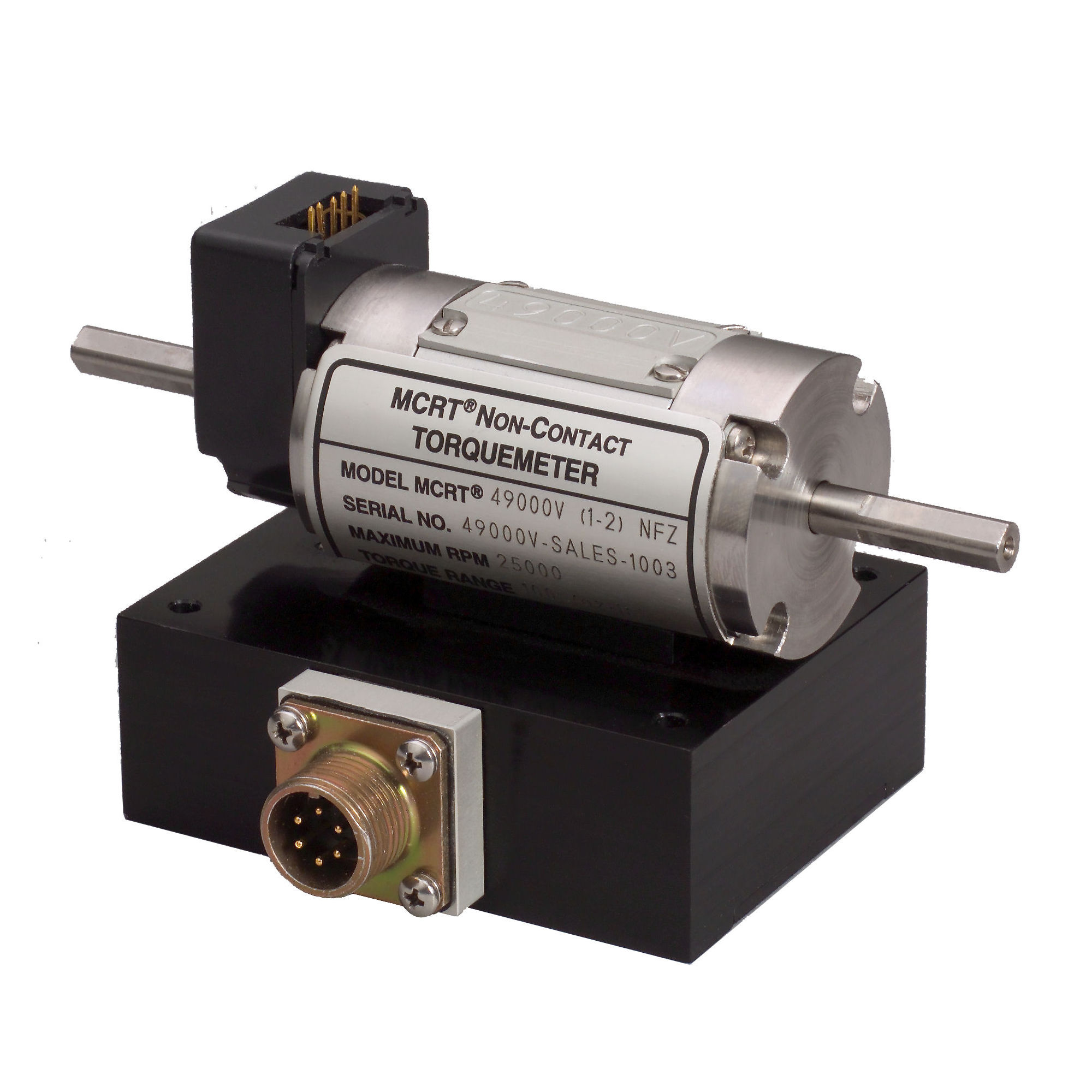

Low Capacity, Non-Contact DC Operated Torquemeters-49000VB

Model #: MCRT® 49000VB
Description:

Low Capacity, DC Operated Torquemeters with 400% Overload

Starting From: $6,085.00
Data Sheet
Request Quote

Features

  • Dual ±5 Volt Outputs
  • Hardened to EMI From Adjustable Speed Drives
  • High Accuracy and High Stiffness to Inertia Ratio
  • Non-magnetic Titanium Shaft
  • Ferrite-free Rotary Transformer T Remote
  • NIST Traceable Calibrated

Ranges

Model #
MCRT® 49000VB(1-1)
Nm
0.071
Lbf-in
0.625
Model #
MCRT® 49000VB( 2-1)
Nm
0.141
Lbf-in
1.25
Model #
MCRT® 49000VB( 5-1)
Nm
0.353
Lbf-in
3.125
Model #
MCRT® 49000VB( 1-2)
Nm
6.25
Lbf-in
100
Model #
MCRT® 49000VB(2-2)
Nm
1.412
Lbf-in
12.5
Code N
Combined Error (% of Range)
=<±0.10
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.003/≤±0.0054
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.003/≤±0.0054

Specs

Mechanical Overload:
400%
Analog Output:
CW = +5V, CCW = -5V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Frequency Modulated Output:
High Frequency Output dc to 500 Hz, Low Frequency Output dc to 1 Hz
Power Supply:

10.5 to 24 Vdc

Available Options

  • 512 ppr Encoder for Speed (Code Z)
  • Encoder with Line Driver (Code B)
  • 10 Volt Output (Code L)
  • 1,100 Hz Output (Code K)
  • Enhanced Speed Rating (Code H)

Accessories

  • Model 703 Instrument - Torque Display Only
  • Model 723 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 703 or 723
224-7696-XX
Encoder to 723
224-7603V-20
Encoder with Line Driver to 723
224-7514V-XX
