High Capacity Dual Range Bearingless Digital Torquemeters-88700V

Model #: MCRT® 88700V
Description:

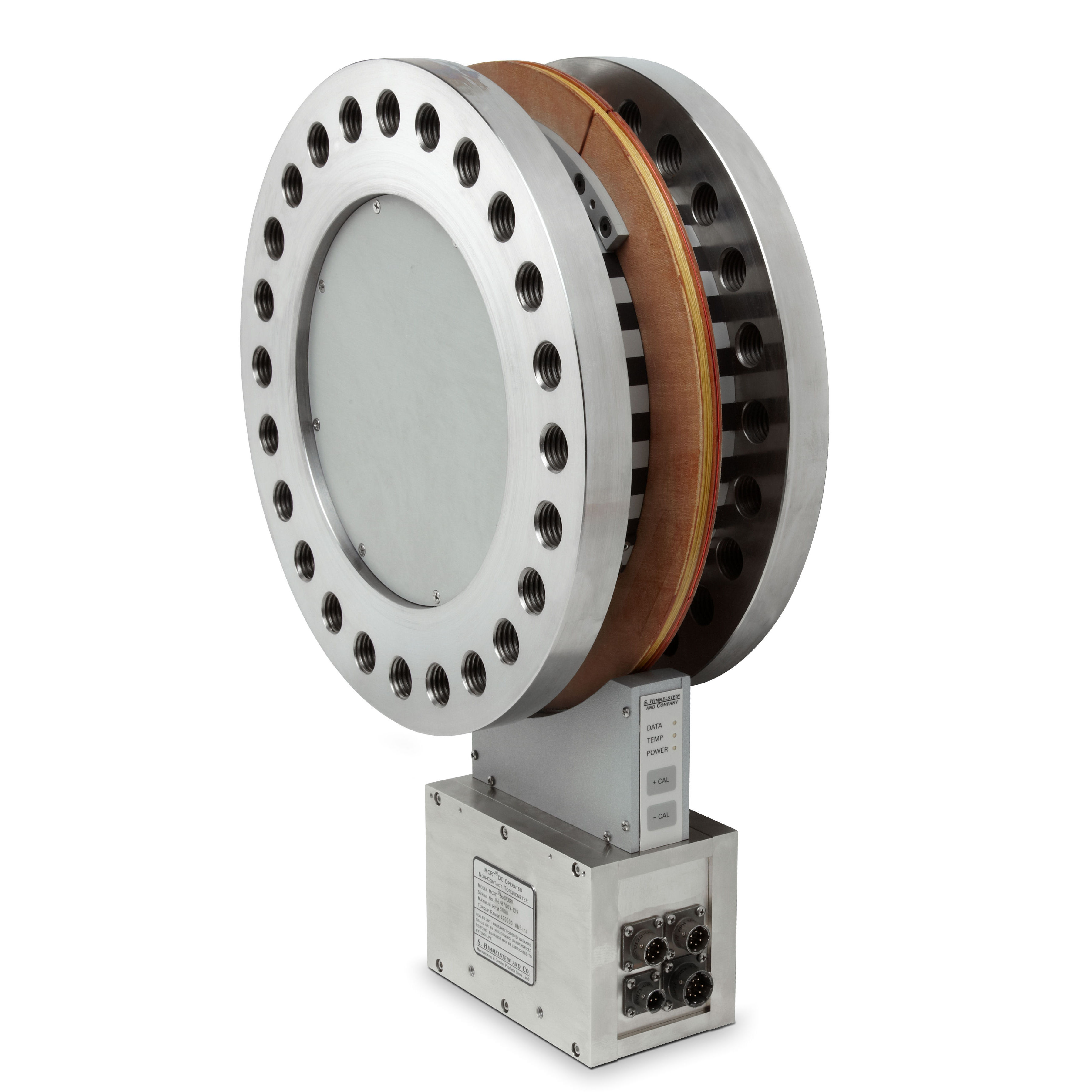

Flanged Wireless In-line Rotating Dual Range Torque Transducer

Starting From: $24,245.00
Data Sheet
Quick Start Installation Guide
Product Manual
Request Quote

Features

  • Best Real World Accuracy of Any Similar Torquemeter, Torque Sensor or Torque Transducer
  • Simple Installation, Tolerant of Rotor-Stator Misalignment
  • Low Sensitivity to Clamping Loads
  • Noise Tolerant Carrier Amplification
  • Bi-Directional Rotor Shunt Calibration
  • No Hoop or Caliper Antennae
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration





Ranges

Model #
Nm
Lbf-in

Dual Ranges

Model #
MCRT® 88708V(3-5)
Low Range Nm
6,780
High Range Nm
33,900
Low Range Lbf-in
60,000
High Range Lbf-in
300,000
Model #
MCRT® 88708V(5-5)
Low Range Nm
11,300
High Range Nm
56,500
Low Range Lbf-in
100,000
High Range Lbf-in
500,000
Model #
MCRT® 88708V(75-4)
Low Range Nm
17,000
High Range Nm
84,800
Low Range Lbf-in
150,000
High Range Lbf-in
750,000
Model #
MCRT® 88709V(1-6)
Low Range Nm
22,600
High Range Nm
113,000
Low Range Lbf-in
200,000
High Range Lbf-in
1,000,000
Model #
MCRT® 88709V(175-4)
Low Range Nm
39,600
High Range Nm
198,000
Low Range Lbf-in
350,000
High Range Lbf-in
1,750,000
Model #
MCRT® 88709V(25-5)
Low Range Nm
56,500
High Range Nm
283,000
Low Range Lbf-in
500,000
High Range Lbf-in
2,500,000
Model #
MCRT® 88710V(325-4)
Low Range Nm
73,500
High Range Nm
367,000
Low Range Lbf-in
650,000
High Range Lbf-in
3,200,000
Model #
MCRT® 88710V(4-6)
Low Range Nm
90,400
High Range Nm
452,000
Low Range Lbf-in
800,000
High Range Lbf-in
4,000,000
Code N
Combined Error (% of Range)
≤±0.1% of High Range
Combined Error (% of Low Range)
≤±0.1% of Low Range
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Zero (% of Low Range/˚F/˚C)
≤±0.005/≤±0.009
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05% of High Range
Combined Error (% of Low Range)
≤±0.05% of Low Range
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0006/≤±0.001
Temperature Effect Zero (% of Low Range/˚F/˚C)
≤±0.003/≤±0.0054
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200% of High Rating/1,000% of Low Rating
Analog Output:
±10 V with ±15V overrange
Digital Output:

Torque and Temperature with units of measure over RS232C/RS422/RS485/USB

Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
MCRT 88708V - Axial: ±0.25/±6.4, Radial: 0.3/±7.6
MCRT 88709V/88710V - Axial: ±0.2/±5.1, Radial: 0.2/5.1
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:

10 to 26 Vdc @ 6 to 11 Watts nominal

Available Options

  • Enhanced Performance (code C)
  • Magnetic Speed Pickup (Code Z)
  • Optical Speed Pickup (Code O)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 723+ Instrument - Torque and Speed Display



Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply with Tinned Leads
224-8362-XX
Torque to 700 Series
224-8430-XX
Speed to 700 Series
224-5327V-XX
Analog Output to Tinned Leads
224-8358-XX
I/O & FM output to Tinned Leads
224-8369-XX
Speed to Tinned Leads
224-5347-XX
RS232
224-8359-XX
RS422/RS485
224-8360-XX
