Bearingless Digital Torquemeters-85000V

Model #: MCRT® 85000V
Description:

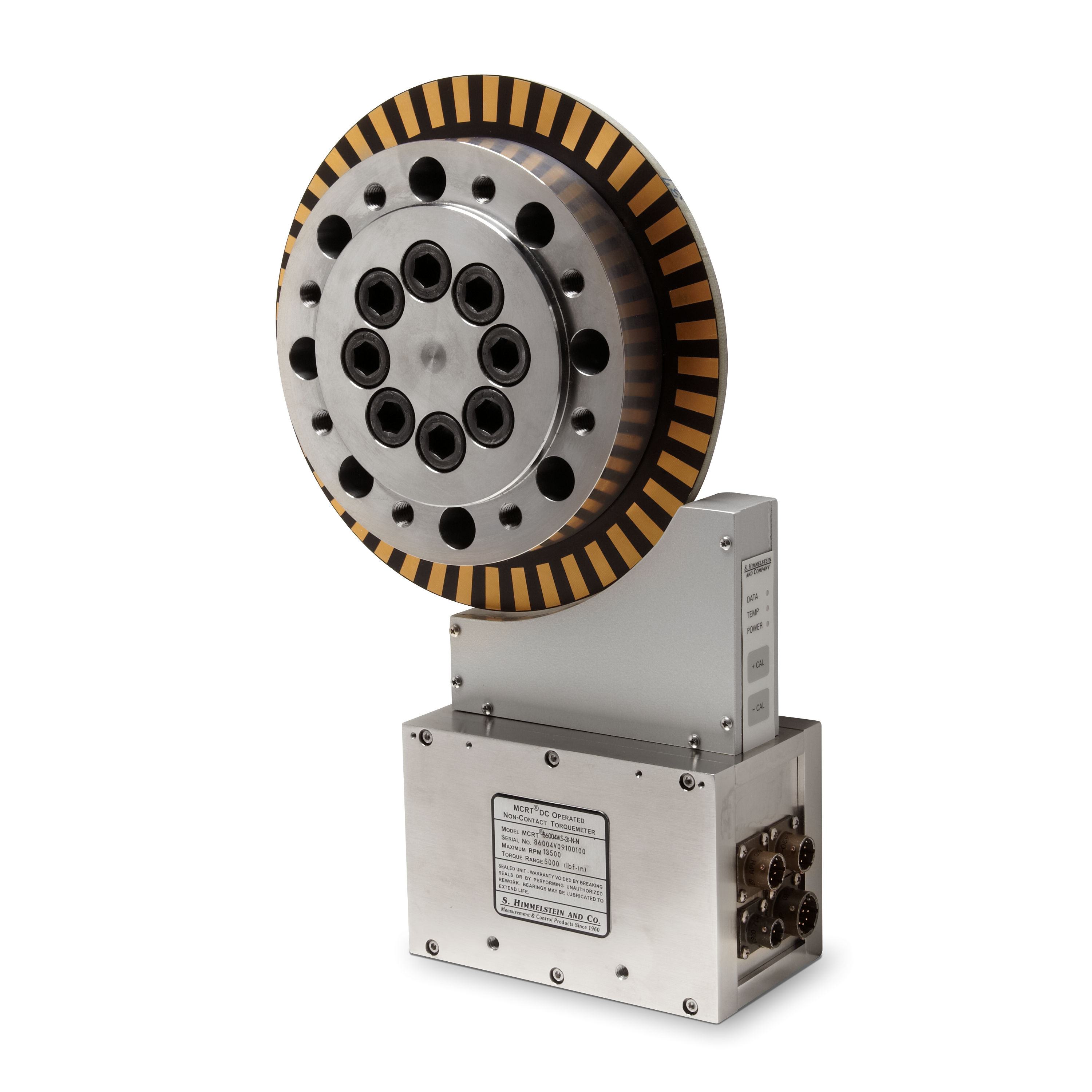

Flanged Wireless In-line Rotating Torque Transducer

Starting From: $9,950.00
Data Sheet
Quick Start Installation Guide
Product Manual
Request Quote

Features

  • Best Real World Accuracy of Any Similar Torquemeter, Torque Sensor or Torque Transducer
  • Wide Installed Measurement Bandwidth
  • Simple Installation, Tolerant of Rotor-Stator Misalignment
  • Low Sensitivity to Clamping Loads
  • Noise Tolerant Carrier Amplification
  • Bi-Directional Rotor Shunt Calibration
  • No Hoop or Caliper Antennae
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration

Ranges

Model #
MCRT 85002V(25-1)
Nm
28.2
Lbf-in
250
Model #
MCRT® 85002V(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 85002V(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 85004V(25-2)
Nm
282
Lbf-in
2500
Model #
MCRT® 85004V(5-3)
Nm
565
Lbf-in
5000
Model #
MCRT® 85004V(1-4)
Nm
1130
Lbf-in
10000
Model #
MCRT® 85007V(25-3)
Nm
2820
Lbf-in
25000
Model #
MCRT® 85007V(5-4)
Nm
5650
Lbf-in
50000
Code N
Combined Error (% of Range)
≤±0.04
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.02
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0003/≤±0.00054
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code J
Combined Error (% of Range)
≤±0.01
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0003/≤±0.00054
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.0015/≤±0.0027

Specs

Mechanical Overload:
400%
Analog Output:
±10 V with ±15V overrange
Digital Output:

Torque and Temperature with units of measure over RS232C/RS422/RS485/USB

Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
Axial: ±0.4/±10.2, Radial: 0.3/±7.6
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:

10 to 26 Vdc @ 6 to 11 Watts nominal

Available Options

  • Enhanced Performance (code C)
  • Ultra-Precision Performance (code J)
  • Magnetic Speed Pickup (code Z)
  • Optical Speed Pickup (code O)

Accessories

  • Model 703+ Instrument - Torque Display Only
  • Model 723+ Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply with Tinned Leads
224-8362-XX
Torque to 703+ or 723+
224-8430-XX
Speed to 723+
224-5327V-XX
Analog Output to Tinned Leads
224-8358-XX
I/O & FM Output to Tinned Leads
224-8369-XX
Speed to Tinned Leads
224-5347-XX
RS232
224-8359-XX
RS422/RS485
224-8360-XX
