Bearingless Digital Torquemeters-86000V

Model #: MCRT® 86000V
Description:

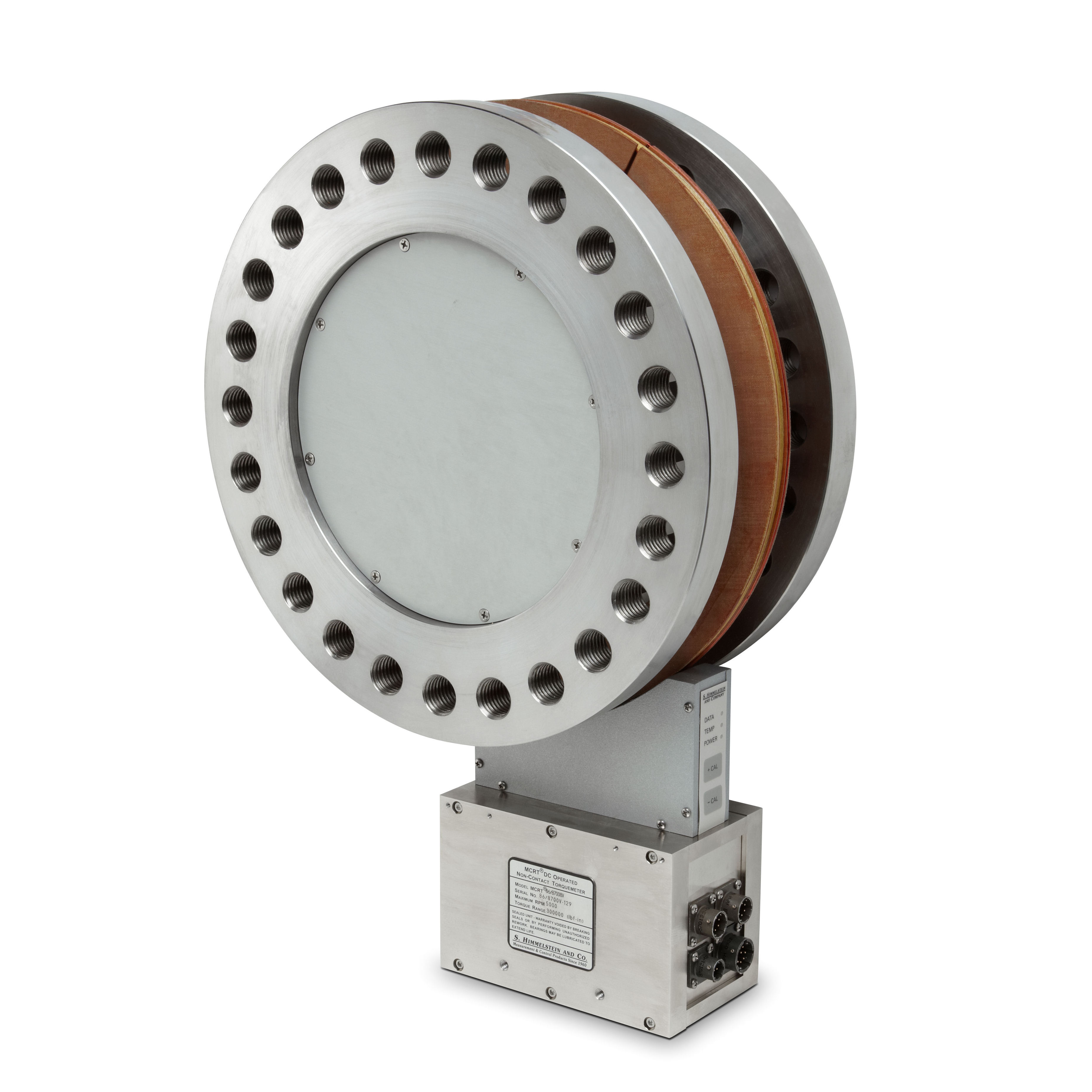

High Capacity Flanged In-line Rotating Torque Transducer

Starting From: $18,650.00
Data Sheet
Quick Start Installation Guide
Product Manual
Request Quote

Features

  • Best Real World Accuracy of Any Similar Torquemeter, Torque Sensor or Torque Transducer
  • High Overange and Overload
  • World Class Temperature Performance
  • Immunity to External Noise
  • High Stiffness and Low Deflection
  • Bi-Directional Rotor Shunt Calibration
  • Simple, Non-critical Installation
  • ISO 17025 Accredited, NIST Traceable Bidirectional Calibration

Ranges

Model #
MCRT® 86008V(3-5)
Nm
33900
Lbf-in
300000
Model #
MCRT® 86008V(5-5)
Nm
56500
Lbf-in
500000
Model #
MCRT® 86008V(75-4)
Nm
84700
Lbf-in
750000
Model #
MCRT® 86009V(1-6)
Nm
113000
Lbf-in
1000000
Model #
MCRT® 86009V(175-4)
Nm
198000
Lbf-in
1750000
Model #
MCRT® 86009V(25-5)
Nm
282000
Lbf-in
2500000
Model #
MCRT® 86010V(325-4)
Nm
367000
Lbf-in
3250000
Model #
MCRT® 86010V(4-6)
Nm
452000
Lbf-in
4000000
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0006/≤±0.001
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200%
Analog Output:
±10 V with ±15V overrange
Digital Output:

Torque and Temperature with units of measure over RS232C/RS422/RS485/USB

Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
MCRT 86008V - Axial: ±0.4/±10.2, Radial: 0.3/±7.6
MCRT 86009V/86010V - Axial: ±0.2/±5.1, Radial: 0.2/5.1
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:

10 to 26 Vdc @ 6 to 11 Watts nominal

Available Options

  • Enhanced Performance (Code C)
  • Magnetic Speed Pickup (code Z)
  • Optical Speed Pickup (code O)

Accessories

  • Model 703 Instrument - Torque Display Only
  • Model 723 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply with Tinned Leads
224-8362-XX
Torque to 703 or 723
224-8430-XX
Speed to 723
224-5327V-XX
Analog Output to Tinned Leads
224-8358-XX
I/O & FM Output to Tinned Leads
224-8369-XX
Speed to Tinned Leads
224-5347-XX
RS232
224-8359-XX
RS422/RS485
224-8360-XX
