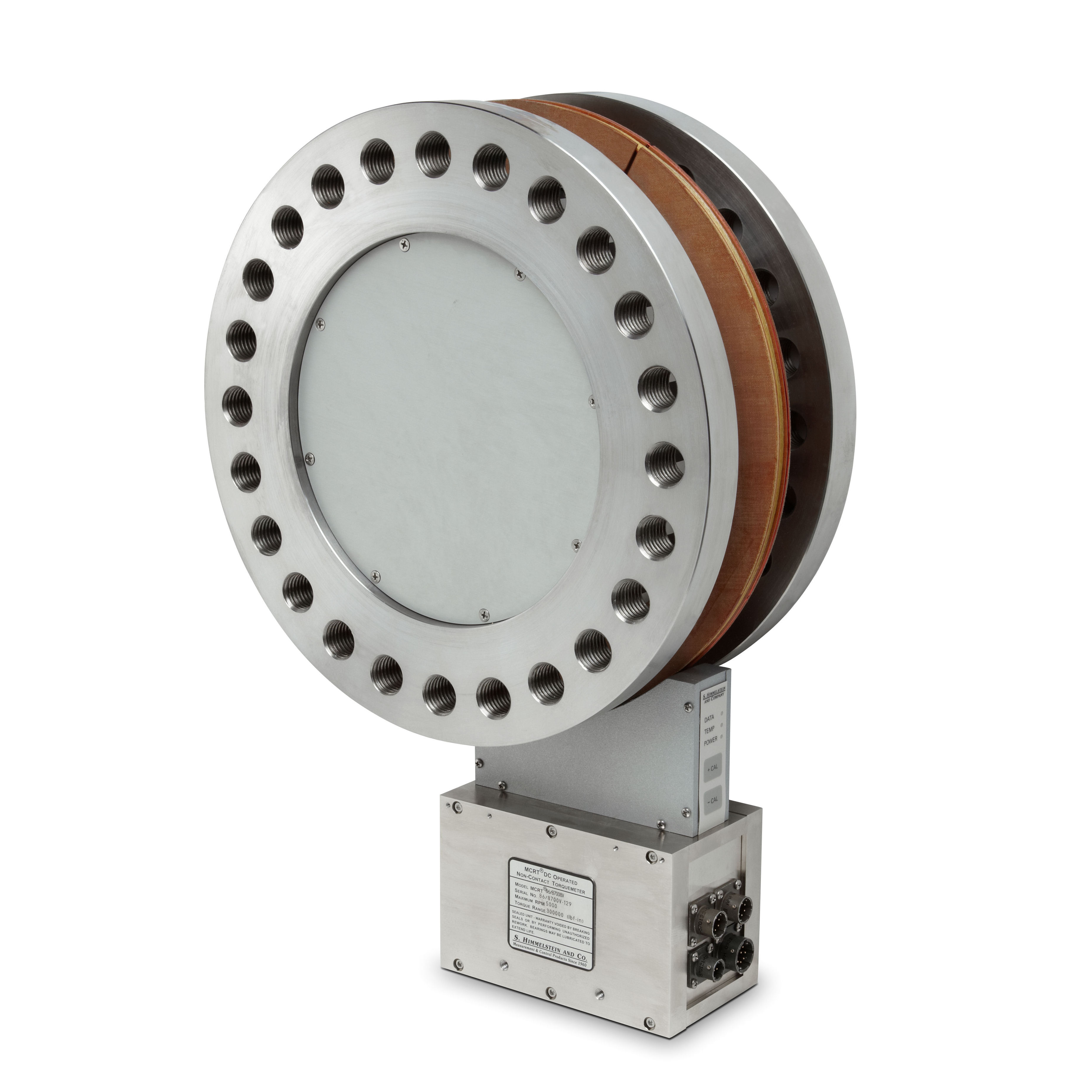

Bearingless Digital Torquemeters-86100V
Model #: MCRT® 86100V
Description:
High Capacity Metric In-line Rotating Torque Transducer
Starting From: $18,650.00
Features
- Best Real World Accuracy of Any Similar Torquemeter, Torque Sensor or Torque Transducer
- High Overange and Overload
- Strain Gage Carrier Amplification
- Immunity to External Noise
- High Stiffness and Low Deflection
- Bi-Directional Rotor Shunt Calibration
- Simple, Non-critical Installation
- ISO 17025 Accredited, NIST Traceable Bidirectional Calibration
Ranges
Model #
MCRT® 86108V(3-4 Nm)
Nm
30000
Lbf-in
265500
Model #
MCRT® 86108V(4-4 Nm)
Nm
40000
Lbf-in
354000
Model #
MCRT® 86108V(5-4 Nm)
Nm
50000
Lbf-in
442500
Model #
MCRT® 86108V(6-4 Nm)
Nm
60000
Lbf-in
531000
Model #
MCRT® 86108V(7-4 Nm)
Nm
70000
Lbf-in
619580
Model #
MCRT® 86108V(8-4Nm)
Nm
80000
Lbf-in
708000
Model #
MCRT® 86108V(85-3 Nm)
Nm
85000
Lbf-in
752000
Model #
MCRT® 86108V(9-4 Nm)
Nm
90000
Lbf-in
796600
Model #
MCRT® 86109V(11-4 Nm)
Nm
110000
Lbf-in
974000
Model #
MCRT® 86109V(12-4 Nm)
Nm
120000
Lbf-in
1062000
Model #
MCRT® 86109V(15-4 Nm)
Nm
150000
Lbf-in
1327700
Model #
MCRT® 86109V(2-5 Nm)
Nm
200000
Lbf-in
1770000
Model #
MCRT® 86109V(22-4 Nm)
Nm
220000
Lbf-in
1950000
Model #
MCRT® 86109V(25-4 Nm)
Nm
250000
Lbf-in
2213000
Model #
MCRT® 86109V(28-4 Nm)
Nm
280000
Lbf-in
2480000
Model #
MCRT® 86109V(3-5 Nm)
Nm
300000
Lbf-in
2655000
Model #
MCRT® 86109V(31-4 Nm)
Nm
310000
Lbf-in
2744000
Model #
MCRT® 86109V(33-4 Nm)
Nm
330000
Lbf-in
2921000
Model #
MCRT® 86110V(37-4 Nm)
Nm
370000
Lbf-in
3275000
Model #
MCRT® 86110V(38-4 Nm)
Nm
380000
Lbf-in
3364000
Model #
MCRT® 86110V(4-5 Nm)
Nm
400000
Lbf-in
3540000
Model #
MCRT® 86110V(42-4 Nm)
Nm
420000
Lbf-in
3717500
Model #
MCRT® 86110V(45-4 Nm)
Nm
450000
Lbf-in
3983000
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.0006/≤±0.001
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Specs
Mechanical Overload:
200%
Analog Output:
±10 V with ±15V overrange
Digital Output:
Torque and Temperature with units of measure over RS232C/RS422/RS485/USB
Compensated Range ˚F/˚C:
+75 to +175/+24 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Bandwidth (Bessel Response Filters):
0.1 Hz to 1 kHz in thirteen 1-2-5 steps, plus 3 kHz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Rotor to Stator Maximum Misalignment (inches/mm):
MCRT 86108V - Axial: ±0.25/±6.3, Radial: 0.3/±7.6
MCRT 86109V/86110V - Axial: ±0.2/±5.1, Radial: 0.2/5.1
MCRT 86109V/86110V - Axial: ±0.2/±5.1, Radial: 0.2/5.1
Frequency Modulated Output:
10±5/10±20/40±20 kHz; field changeable; TTL square wave
Power Supply:
10 to 26 Vdc @ 6 to 11 Watts nominal
Accessories
- Model 703+ Instrument - Torque Display Only
- Model 723+ Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Power Supply with Tinned Leads
224-8362-XX
Torque to 703+ or 723+
224-8430-XX
Speed to 723+
224-5327V-XX
Analog Output to Tinned Leads
224-8358-XX
I/O & FM output to Tinned Leads
224-8369-XX
Speed to Tinned Leads
224-5347-XX
RS232
224-8359-XX
RS422/RS485
224-8360-XX
