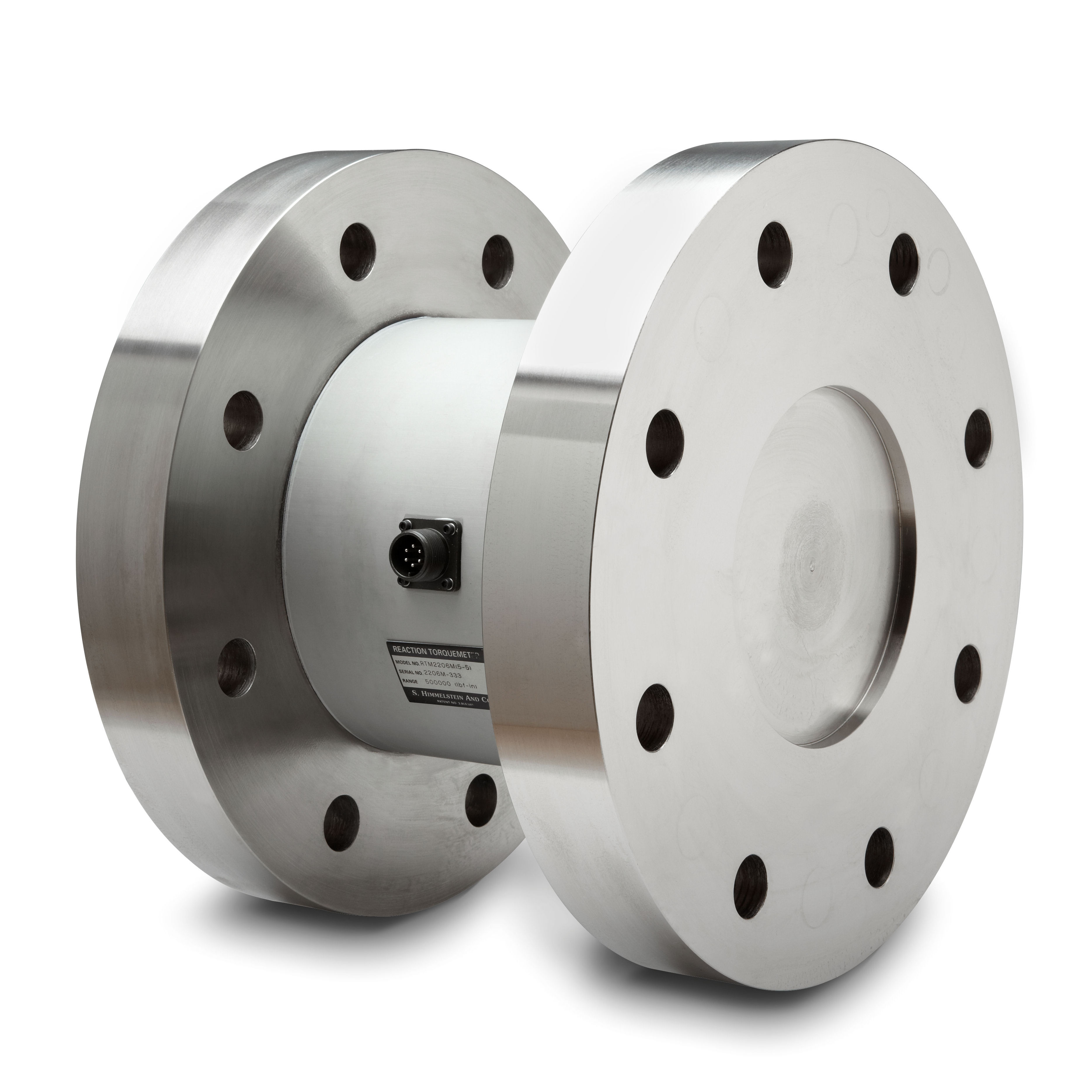

Precision, Large Capacity, Solid Flanged Reaction Torquemeters-RTM 2206M & RTM 2207M

Model #: RTM 2206M & RTM 2207M
Description:

Precision, High Capacity Solid Flanged Reaction Torque Sensors

Starting From: $11,715.00
Data Sheet
Request Quote

Features

  • ±2 mV/V or ±10V output
  • Traceable, full load bi-directional calibration
  • Handles high extraneous loads without de-rating
  • High stiffness, short length, low crosstalk

Ranges

Model #
RTM 2206M(3-5)
Nm
33900
Lbf-in
300000
Model #
RTM 2206M(5-5)
Nm
56500
Lbf-in
500000
Model #
RTM 2207M(6-5)
Nm
67800
Lbf-in
600000
Model #
RTM 2207M(75-4)
Nm
84750
Lbf-in
750000
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200%
Analog Output:
±2 mV/V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Usable Range ˚F/˚C:
-65 to +225/-54 to +107
Power Supply:

5 to 15 Volts ac or dc

Accessories

  • Model 708 Instrument - Torque Display Only
  • Model 788 Instrument - 2 Channel Torque Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 708 or 788
224-3642V-XX
