Solid Flanged Reaction Torque Transducers-RTM 2200M

Model #: RTM 2200M
Description:

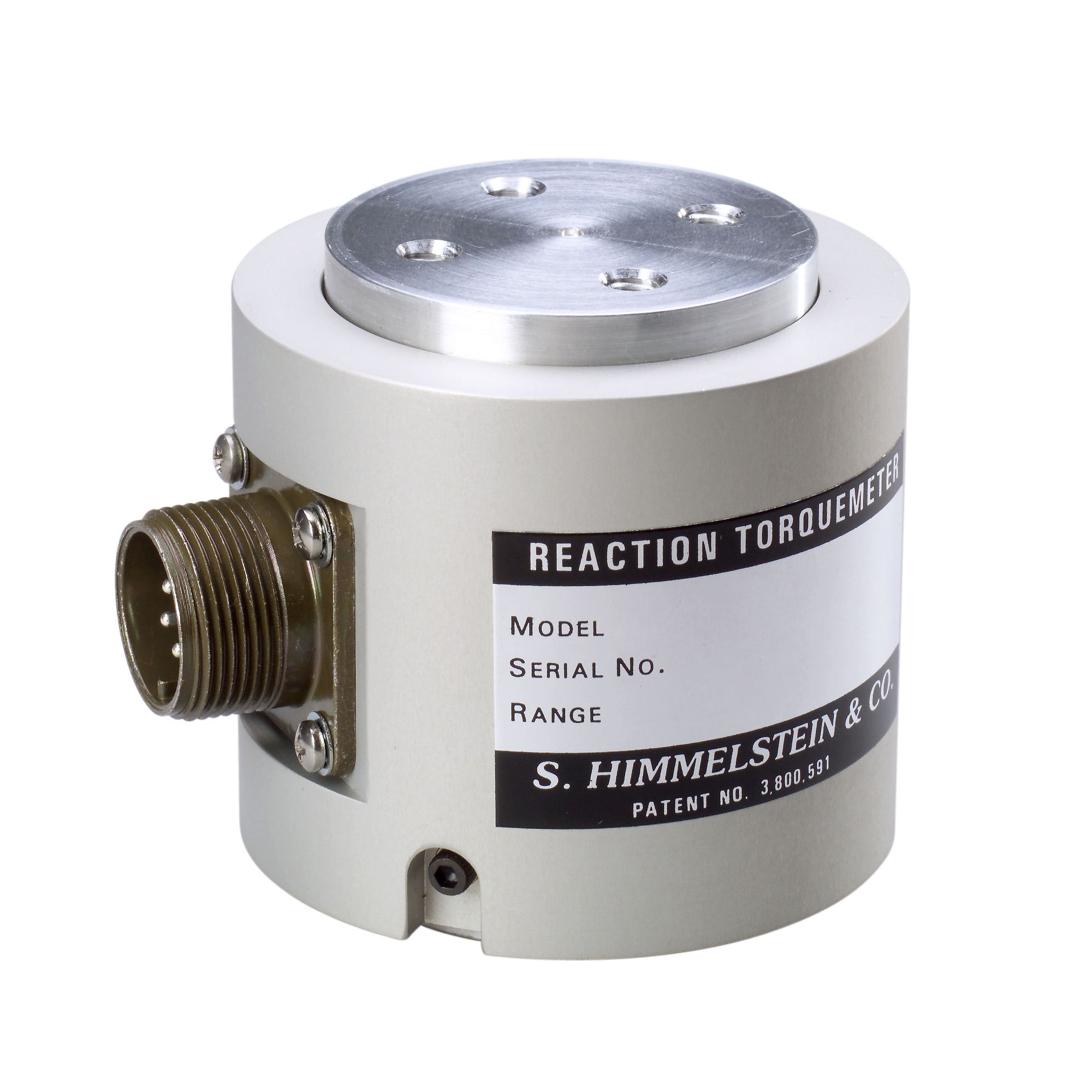

Solid Flanged Reaction Torque Transducers

Starting From: $1,515.00
Data Sheet
Request Quote

Features

  • No bearings or speed limit
  • Short length with high stiffness
  • 15-5PH stainless and aluminum alloy sensing elements
  • NIST traceable bidirectional calibration

Ranges

Model #
RTM 2200M(1-1)
Nm
0.071
Lbf-in
0.625
Model #
RTM 2200M(2-1)
Nm
0.141
Lbf-in
1.25
Model #
RTM 2200M(5-1)
Nm
0.353
Lbf-in
3.125
Model #
RTM 2200M(1-2)
Nm
0.706
Lbf-in
6.25
Model #
RTM 2200M(2-2)
Nm
1.412
Lbf-in
12.5
Model #
RTM 2201M(1-1)
Nm
1.13
Lbf-in
10
Model #
RTM 2201M(2-1)
Nm
2.26
Lbf-in
20
Model #
RTM 2201M(5-1)
Nm
5.65
Lbf-in
50
Model #
RTM 2202M(1-2)
Nm
11.3
Lbf-in
100
Model #
RTM 2202M(2-2)
Nm
22.6
Lbf-in
200
Model #
RTM 2202M(5-2)
Nm
56.5
Lbf-in
500
Model #
RTM 2203M(1-3)
Nm
113
Lbf-in
1000
Model #
RTM 2203M(2-3)
Nm
226
Lbf-in
2000
Model #
RTM 2203M(5-3)
Nm
565
Lbf-in
5000
Model #
RTM 2204M(1-4)
Nm
1130
Lbf-in
10000
Model #
RTM 2204M(2-4)
Nm
2260
Lbf-in
20000
Model #
RTM 2205M(5-4)
Nm
5650
Lbf-in
50000
Model #
RTM 2205M(1-5)
Nm
11300
Lbf-in
100000
Code N
Combined Error (% of Range)
±0.1%
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036

Specs

Mechanical Overload:
200%
Analog Output:
±2 mV/V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Usable Range ˚F/˚C:
-65 to +225/-54 to +107
Power Supply:

15 Volts max, ac or dc

Accessories

  • Model 701 Instrument - Torque Display Only
  • Model 711 Instrument - 2 Channel Torque Display
  • Model 708 Instrument - Torque Display Only
  • Model 788 Instrument - 2 Channel Torque Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
RTM 2200M Torque to 701, 711, 708 or 788
224-8147V-XX
Torque to 701, 711, 708 or 788
224-3642V-XX
