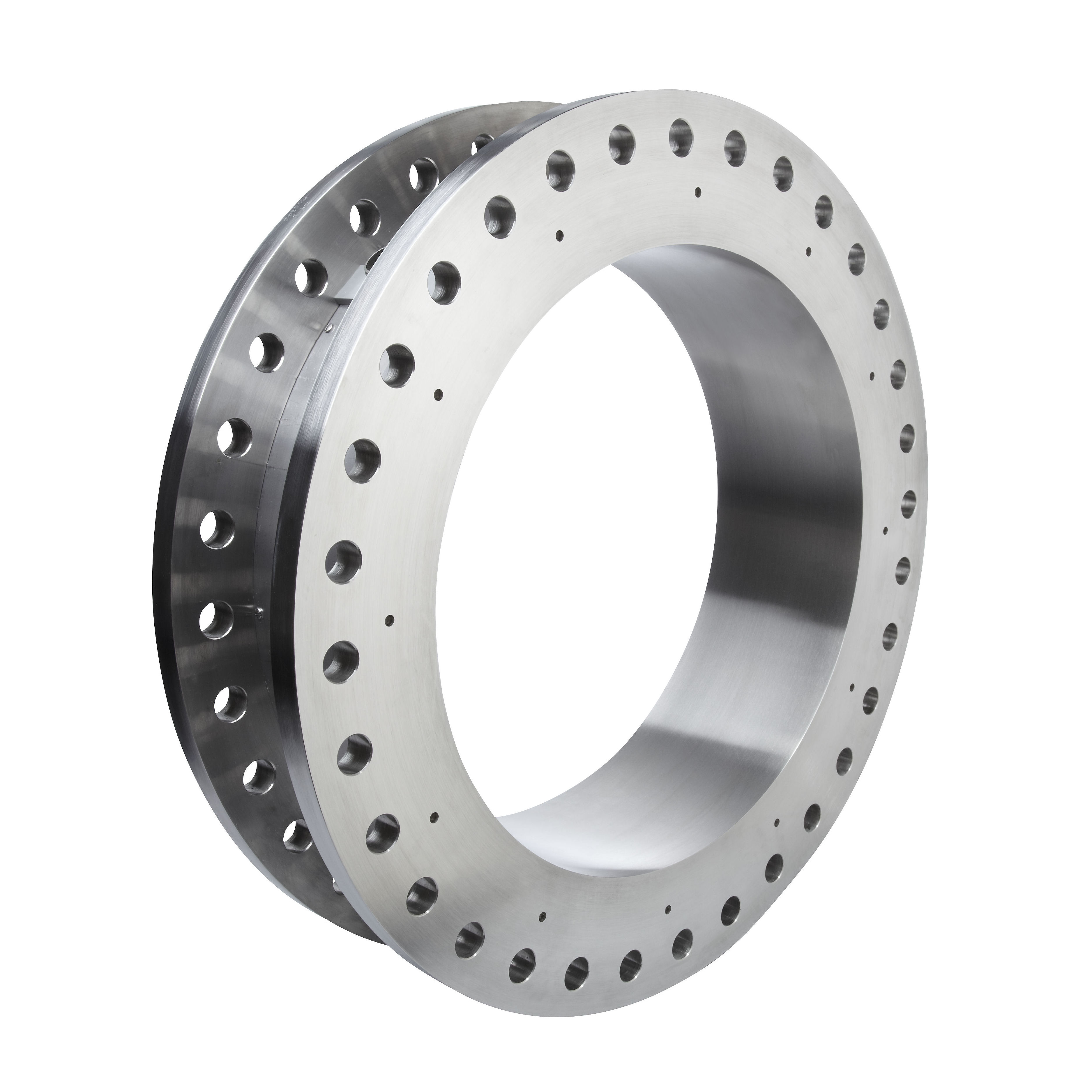

High Capacity, Large Bore, Hollow Flanged Reaction Torque Transducers-RTM 2090
Model #: RTM 2080/20902092
Description:
High Capacity, Large Bore, Hollow Flanged Reaction Torque Transducers
Starting From: Contact Us for Pricing
Features
- Multiple strain gage bridges
- High torsional stiffness
- High strength stainless steel 15-5PH construction
Ranges
Model #
RTM 2090(12-5)
Nm
136,000
Lbf-in
1200000
Model #
RTM 2090(18-5)
Nm
203000
Lbf-in
1800000
Model #
RTM 2090(24-5)
Nm
271000
Lbf-in
2400000
Model #
RTM 2080(3-5)
Nm
33900
Lbf-in
300,000
Code N
Combined Error (% of Range)
±0.25%
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Specs
Mechanical Overload:
200%
Analog Output:
1.5 mV/V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Usable Range ˚F/˚C:
-25 to +185/-31 to +85
Storage Range ˚F/˚C:
-65 to +220/-54 to +104
Power Supply:
15 Volts, ac or dc
Accessories
- Model 708+ Instrument - Torque Display Only
- Model 788+ Instrument - 2 Channel Torque Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 708+ or 788+
224-3642V-20
