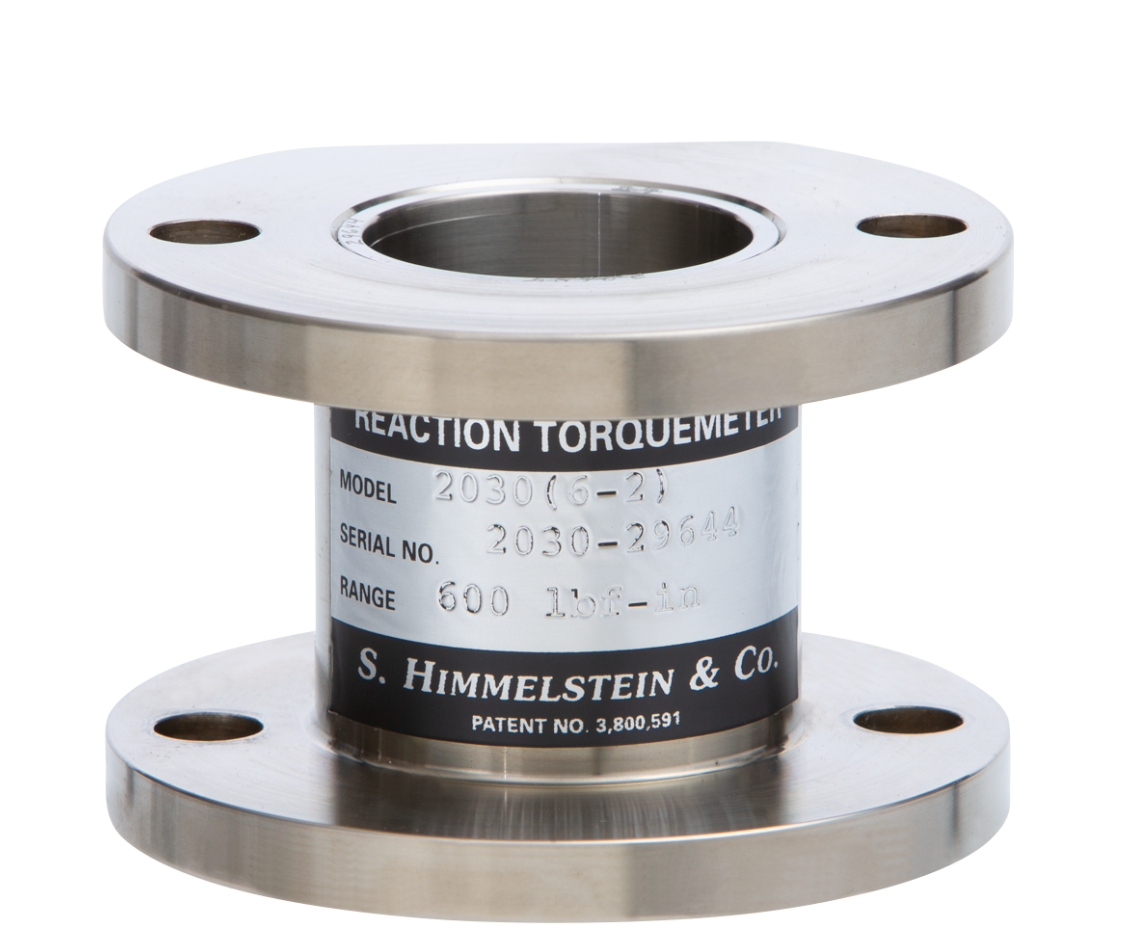

Hollow Flanged Reaction Torque Transducers
Model #: RTM 2000
Description:
Hollow Flanged Reaction Torque Transducer
Starting From: $2,120.00
Features
- 0.1% Accuracy NIST Traceable and Remote Calibration
- Patented double wall construction
- Exceptional fatigue properties
- Compact mechanical package
Ranges
Model #
RTM 2010(6-1)
Nm
6.77
Lbf-in
60
Model #
RTM 2010(12-1)
Nm
13.55
Lbf-in
120
Model #
RTM 2020(24-1)
Nm
27.11
Lbf-in
240
Model #
RTM 2030(6-2)
Nm
67.79
Lbf-in
600
Model #
RTM 2030(12-2)
Nm
135.58
Lbf-in
1200
Model #
RTM 2050(3-3)
Nm
338.95
Lbf-in
3000
Model #
RTM 2050(6-3)
Nm
677.90
Lbf-in
6000
Model #
RTM 2060(1-4)
Nm
1130
Lbf-in
10000
Model #
RTM 2060(2-4)
Nm
2260
Lbf-in
20000
Model #
RTM 2070(5-4)
Nm
5650
Lbf-in
50000
Model #
RTM 2070(1-5)
Nm
11300
Lbf-in
100000
Model #
RTM 2090(12-5)
Nm
135581
Lbf-in
1200000
Model #
RTM 2090(18-5)
Nm
203372
Lbf-in
1800000
Model #
RTM 2090(24-5)
Nm
271163
Lbf-in
2400000
Code N
Combined Error (% of Range)
±0.1%
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Specs
Mechanical Overload:
200%
Analog Output:
1-1/2 mV/V except Model 2137 and Models 2010 thru 2050 which are 1 mV/V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Usable Range ˚F/˚C:
-65 to +225/-54 to +107
Accessories
- Model 701 - Torque Display Only
- Model 708 Instrument - Torque Display Only
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 701, 711, 708 or 788
224-3642V-XX
