Solid Flanged Reaction Torque Transducers-RTM 2200V
Model #: RTM 2200V
Description:

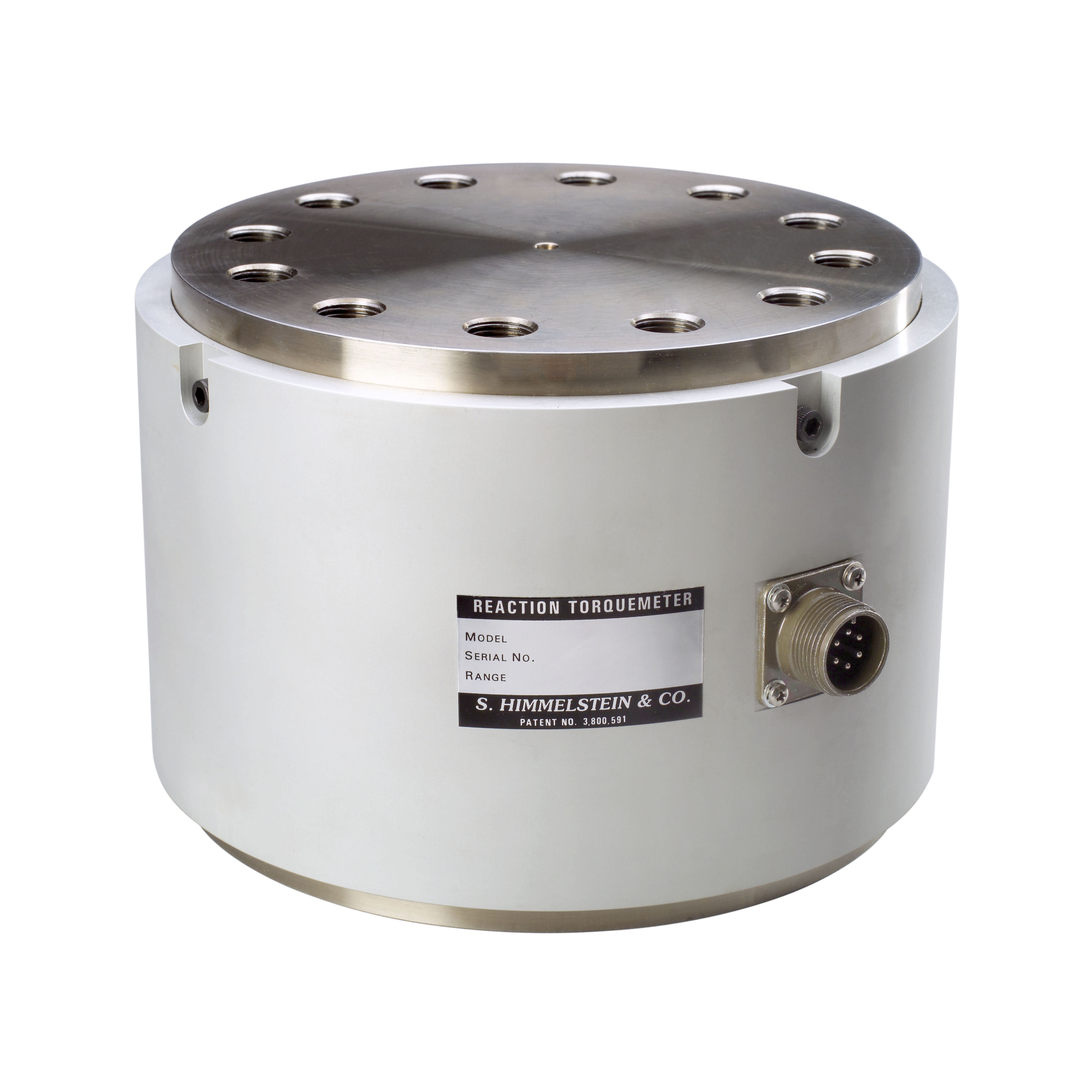

Solid Flanged Reaction Torque Transducers
Starting From: Obsolete. Please see RTM 2270 or RTM 2280
Features
- No bearings or speed limit
- Short length with high stiffness
- 15-5PH stainless and aluminum alloy sensing elements
- NIST traceable bidirectional calibration
Ranges
Model #
RTM 2202V(1-2)
Nm
11.3
Lbf-in
100
Model #
RTM 2202V(2-2)
Nm
22.6
Lbf-in
200
Model #
RTM 2202V(5-2)
Nm
56.5
Lbf-in
500
Model #
RTM 2203V(1-3)
Nm
113
Lbf-in
1000
Model #
RTM 2203V(2-3)
Nm
226
Lbf-in
2000
Model #
RTM 2203V(5-3)
Nm
565
Lbf-in
5000
Model #
RTM 2204V(1-4)
Nm
1130
Lbf-in
10000
Model #
RTM 2204V(2-4)
Nm
2260
Lbf-in
20000
Model #
RTM 2205V(5-4)
Nm
5650
Lbf-in
50000
Model #
RTM 2205V(1-5)
Nm
11300
Lbf-in
100000
Code N
Combined Error (% of Range)
±0.1%
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.003/≤±0.0054
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.003/≤±0.0054
Specs
Mechanical Overload:
200%
Analog Output:
±10 V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Nominal Overange (% of Range):
130%
Usable Range ˚F/˚C:
-65 to +185/-54 to +85
Bandwidth (Bessel Response Filters):
dc to 500 Hz
Power Supply:
13.5 to 24V dc, unregulated @ 50mA max
Accessories
- Model 703 Instrument - Torque Display Only
- Model 733 Instrument - 2 Channel Torque Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 703 or 733
224-7696-XX
