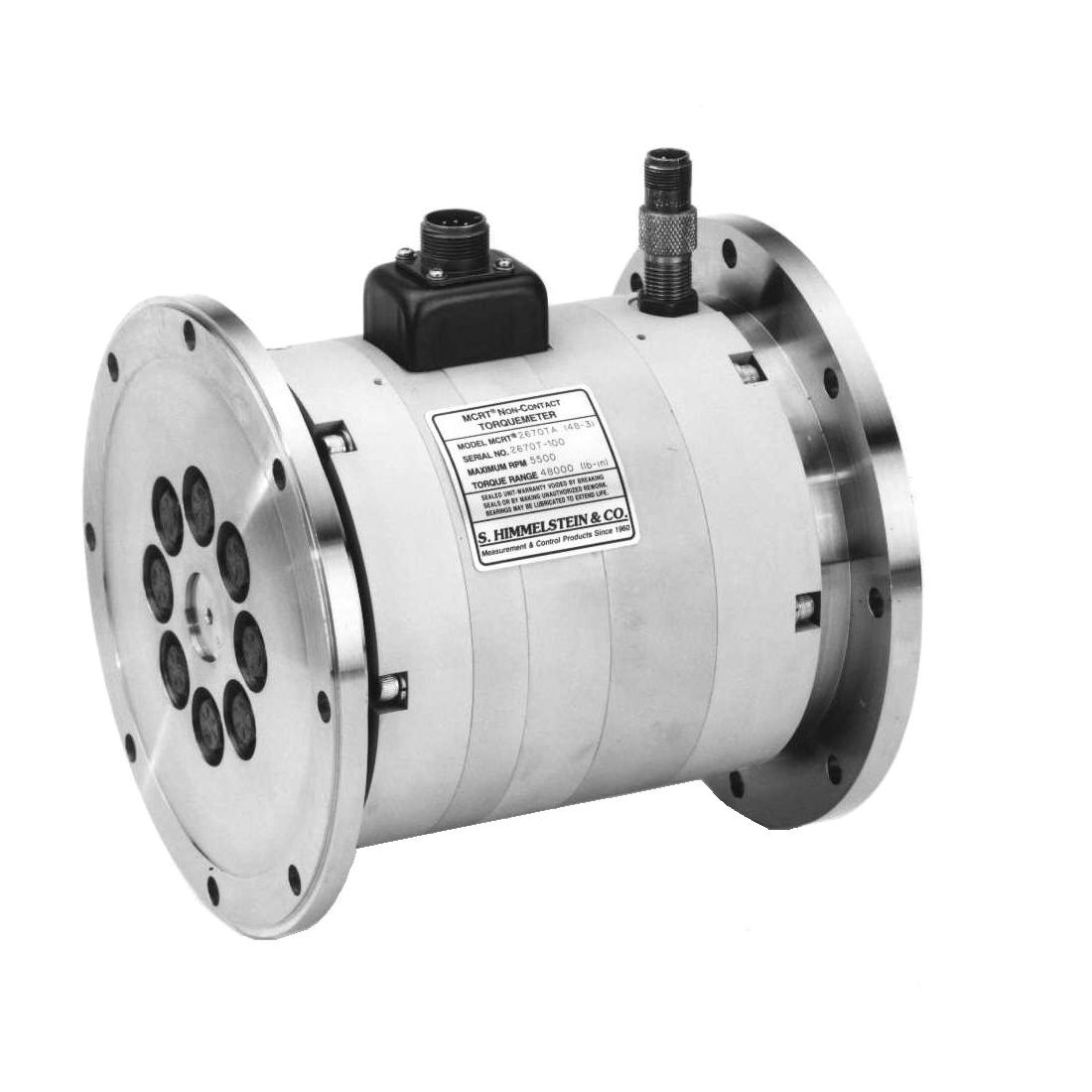

Non-Contact, Flanged End, mV/V Output Strain Gage Torquemeters-28000T- Obsolete. Possibly available by special order only. See Obsolete Model Number Cross Reference Chart
Model #: MCRT® 28000T
Description:
Flanged end, mV/V Strain Gage Torque Sensors
Starting From: $9,910.00
Features
- Hardened to EMI From Adjustable Speed Drives
- mV/V Output, Compatible With Carrier Amplifiers
- Unexcelled Immunity To Machinery Magnetic Fields
- Splashproof, Corrosion Resistant Construction
- Bidirectional Operation Includes Stall
- NIST Traceable Dead Weight Calibration
Ranges
Model #
MCRT® 28060T(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 28060T(2-3)
Nm
226
Lbf-in
2000
Model #
MCRT® 28060T(4-3)
Nm
452
Lbf-in
4000
Model #
MCRT® 28061T(6-3)
Nm
678
Lbf-in
6000
Model #
MCRT® 28061T(1-4)
Nm
1130
Lbf-in
10000
Model #
MCRT® 28061T(18-3)
Nm
4520
Lbf-in
18000
Model #
MCRT® 28070T(24-3)
Nm
2710
Lbf-in
24000
Model #
MCRT® 28070T(48-3)
Nm
10800
Lbf-in
48000
Model #
MCRT® 28070T(96-3)
Nm
10800
Lbf-in
96000
Model #
MCRT® 28080T(2-5)
Nm
22600
Lbf-in
200000
Model #
MCRT® 28080T(375-3)
Nm
42400
Lbf-in
3750000
Code N
Combined Error (% of Range)
≤±0.1
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
≤±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.001/≤±0.0018
Specs
Mechanical Overload:
200%
Analog Output:
1.5 mV/V
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Power Supply:
≤6 volts rms, 3 kHz ±10%, sine wave
Accessories
- Model 701 Instrument - Torque Display Only
- Model 721 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 701 or 721
224-3642V-XX
Zero Speed to 721
224-5327V-XX
Standard Speed to 721
224-3683V-XX
