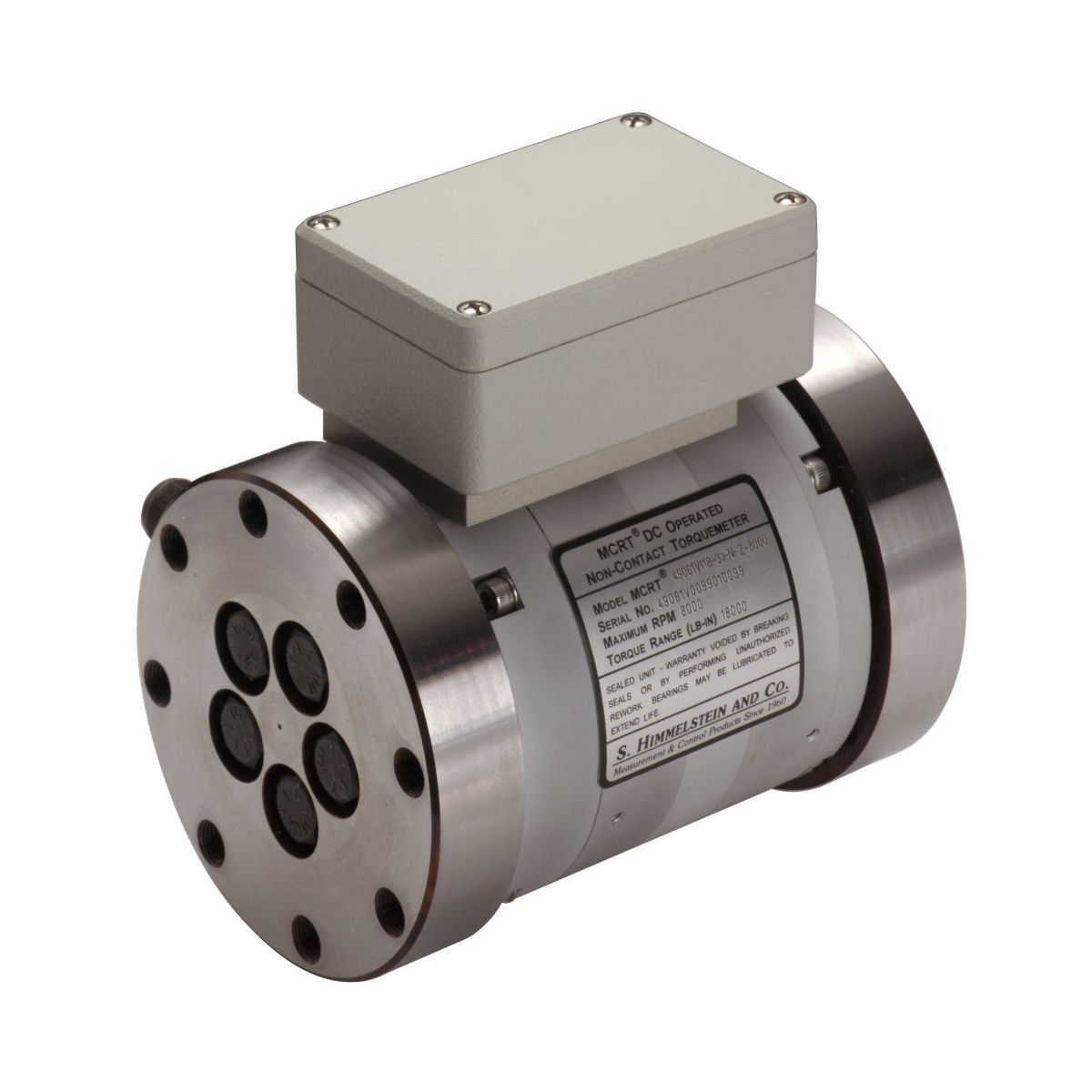

Non-Contact, Flanged End, DC Operated Torquemeters-49000V

Model #: MCRT® 49000V
Description:

Non-Contact DC Operated Torquemeters, Flanged End

Starting From: $13,010.00
MCRT 49000V DC Operated Torque Sensors - 400% Overload
Request Quote

Features

  • High Strength Alloy Shaft, Splashproof and Corrosion Resistant
  • Bidirectional Operation Includes Stall
  • Hardened to EMI From Adjustable Speed Drives
  • Unexcelled Immunity To Machinery Magnetic Fields
  • Single Supply Operation (such as 12 & 24 Volt Batteries)
  • NIST Traceable Dead Weight Calibration

Ranges

Model #
MCRT® 49060V(5-2)
Nm
56.5
Lbf-in
500
Model #
MCRT® 49060V(1-3)
Nm
113
Lbf-in
1000
Model #
MCRT® 49060V(2-3)
Nm
226
Lbf-in
2000
Model #
MCRT® 49061V(3-3)
Nm
339
Lbf-in
3000
Model #
MCRT® 49061V(5-3)
Nm
565
Lbf-in
5000
Model #
MCRT® 49061V(12-3)
Nm
1360
Lbf-in
12000
Model #
MCRT® 49070V(12-3)
Nm
1360
Lbf-in
12000
Model #
MCRT® 49070V(24-3)
Nm
2710
Lbf-in
24000
Model #
MCRT® 49070V(48-3)
Nm
5420
Lbf-in
48000
Model #
MCRT® 49080V(1-5)
Nm
11300
Lbf-in
100000
Model #
MCRT® 49080V(25-4)
Nm
28200
Lbf-in
250000
Code N
Combined Error (% of Range)
±0.10
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.002/≤±0.0036
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.002/≤±0.0036
Code C
Combined Error (% of Range)
±0.05
Temperature Effect Zero (% of Range/˚F/˚C)
≤±0.001/≤±0.0018
Temperature Effect Span (% of Reading/˚F/˚C)
≤±0.001/≤±0.0018

Specs

Mechanical Overload:
400%
Analog Output:
CW = +5 Volts and CCW -5 Volts
Compensated Range ˚F/˚C:
+75 to +175/+23.9 to +79.4
Nominal Overange (% of Range):
150%
Usable Range ˚F/˚C:
-25 to +185/-32 to +85
Bandwidth (Bessel Response Filters):
High Frequency Output: DC to 500 Hz and Low Frequency Output: DC to 1 Hz
Storage Range ˚F/˚C:
-65 to +225/-54 to +107
Power Supply:

10.5 to 24 Volts dc

Available Options

  • Enhanced Performance (Code C)
  • Standard Pickup (Code A)
  • Speed and power output (Code Z)
  • 10 Volt Output (Code L)
  • 1,100 Hz Output (Code K)

Accessories

  • Model 703 Instrument - Torque Display Only
  • Model 723 Instrument - Torque and Speed Display
Cables (standard cable lengths are 20, 50 and 100 feet, replace XX in part number with desired cable length):
Torque to 703+ or 723+
224-7696-XX
Zero Speed to 723+
224-5327V-XX
Standard Speed to 723+
224-3683V-XX
